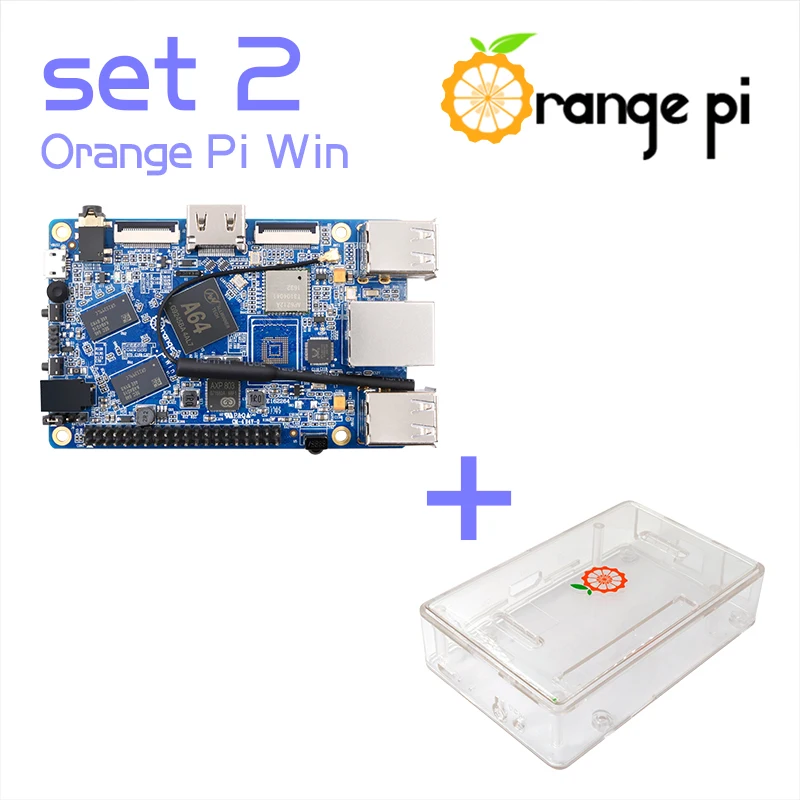

#Deal : Orange Pi Win, Allwinner A64, 1GB, WiFi + Bluetooth, 4xUSB

Add to wishlistAdded to wishlistRemoved from wishlist 0

$25.00

Last updated on 3 June 2020 3 h 03 min

Shenzhen Xunlong has launched the Orange Pi Win with the objective to propose a high performance and accessible platform for the development of project based on Windows 10 IoT. Shenzhen Xunlong works with Microsoft. This collaboration with Microsoft should also lead to the possibility of connecting Orange Pi to the Azure IoT cloud. Go to this web page that lists the maps supported by Microsoft Azure.

The Orange Pi Win is built on the same basis as the Orange Pi Prime, the SoC Allwinner A64 64-bit. The chip AP6212 brings support for WiFi and Bluetooth 4.0

Follow this tutorial to install Armbian without a monitor or keyboard using a single FTDI cable from another computer!

Technical characteristics of the Orange Pi Win

  • CPU: ARM Cortex A53 Quad-core 64 bits@1.2GHz
  • GPU: Mali400MP2
  • Memory: 1GB DDR3 shared with GPU
  • Storage:
    • Micro SD card reader compatible up to 64GB,
    • 8MB memory card connector eMMC SPI NOR flash (not yet released)
  • connectivity
    • Ethernet: 10/100 / 1000M
    • Wi-Fi: IEEE 802.11 b / g / n (AMPAK AP6212). APEX connector to replace antenna for larger range
    • Bluetooth 4.0 (AMPAK AP6212)
  • FM Radio Receiver
  • Video output:
    • HDMI (1.4 with HDCP1.2 up to 4k @ 30fps)
    • LCD (LVDS 1366×768 @ 60fps)
  • Audio Output: Jack + HMDI (supported by Ubuntu – Pulse Audio)
  • USB 2.0: x4
  • Micro-USB 2.0 (OTG): x1
  • Camera: 1080p @ 30fps
  • GPIO: 40 pin
  • Microphone: x1 (from the jack)
  • IR Receiver: x1
  • Dimensions: 93mm × 60mm
  • Weight: 48g
  • Power supply
    • micro USB OTG 5V (3A recommended)
    • By USB connector OTG
    • DCIN 4.0×1.7mm
    • Connector for external battery (choice via jumper selection)

Compare Orange Pi Win with other models

No posts for this criteria.

Internet Deals for Orange Pi Win

History of the best deals on AliExpress

Orange Pi Win Development Board A64 Quad-core Support linux and android Beyond Raspberry Pi Wholesale is available

Price: $25.00
as of 3 June 2020 3 h 03 min
Buy Now
Aliexpress.com
Wait For A Price Drop

Price History

Statistics

Current Price $25.003 June 2020
Highest Price$25.0017 December 2019
Lowest Price$25.0017 December 2019
Since 17 December 2019

Last price changes

$25.0017 December 2019

Packs and accessories for Orange Pi Win

Click to rate this post!
[Total: 0 Average: 0]

Specification: #Deal : Orange Pi Win, Allwinner A64, 1GB, WiFi + Bluetooth, 4xUSB

Memory Capacity (GB)

Processor Brand

Brand Name

Interface

, ,

Demo Board Type

Model Number

Orange Pi Win

is it customized

Operating Temperature

Application

, ,

Supply Voltage (V)

Condition

CPU

A64 Quad-core Cortex-A53 64bit

Memory (SDRAM)

1GB DDR3 (shared with GPU)

GPU

Mali400MP2 GPU Supports OpenGL ES 2.0 and OpenVG1.1
