#Guide: list of components to build an home automation RFLink 433MHz gateway (RFXCom clone)

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on email
Share on whatsapp
Table of Contents

Here is a list of components needed to build a RFLink smart home automation gateway. The RFLink Open Source project makes it possible to make a clone of the radio RFXCom 433MHz radio gateway (or other frequencies) for about $12. The RFLink gateway allows you to communicate with home automation devices using radio waves. It works in both directions:

  • It intercepts and decodes messages emitted by home automation accessories
  • It mimics the original radio transmitter to control the accessories

It is a work of titan which is realized by developer Stuntteam for several years now. New products are constantly being added. You can check the compatibility of your home automation device here. The list is updated every time the firmware is updated.

You can support the project (which makes it possible to buy the new home automation equipment) by making a donation on the blog of the project.

To build the gateway you will need the following hardware

An Arduino Mega 2560

Each home automation device has communication protocol that requires code to decode and encode the frames. With each update, the firmware becomes bigger and bigger. So you need an Arduino with enough flash memory space. Nodo has therefore opted for the Arduino Mega 2560. The Arduino Mega 2560 has 54 I / O instead of 14 for a conventional Arduino. This allows multiple receivers (and transmitter) to be installed in different frequencies (315, 433, 868, 915MHz and 2.4GHz). A single gateway can therefore communicate with a heterogeneous radio home automation equipment park.

MEGA 2560 R3 56 Digital I/O and 16 Analog Inputs with USB...
$9.68
Buy this item
newfrog.com Newfrog.com
Arduino Compatible Mega 2560 R3 Development Board
$10.28
Arduino Mega 2560 Development Board w/USB
$11.94
Robotale Mega 2560 R3 Development Board w/ Arduino Mega 2560 R3
$12.87
Buy this item
dx.com DealExtreme
Mega 2560 R3 ATmega2560-16AU Board Development Board for Arduino
$12.99
Buy this item
http LightInTheBox.com and MiniInTheBox.com
Mega 2560 R3 ATmega2560-16AU Board + USB Cable for Arduino -Black+Blue
$13.59
Buy this item
dx.com DealExtreme
Funduino Mega 2560 R3 Module (Compatible w/ Arduino Mega 2560 R3)
$13.96
Buy this item
dx.com DealExtreme
Improved Funduino Mega 2560 R3 Module for (For Arduino) (Compatible with Official...
$14.99
Buy this item
http LightInTheBox.com and MiniInTheBox.com
Geekcreit® MEGA 2560 R3 ATmega2560-16AU MEGA2560 Development Board With USB Cable For...
CHF 13.99
Elegoo MEGA 2560 R3 Board ATmega2560 ATMEGA16U2 + USB Cable for Arduino
$15.99
Buy this item
amazon.com Amazon.com
Mega 2560 R3 ATmega2560-16AU Board USB Cable for Arduino
$18.59
Buy this item
geekbuying.com GeekBuying
MEGA 2560 R3 | Entwicklerboard für Arduino IDE | ATMEL ATmega2560 AVR...
28.19
ATMEGA16U2 Board For Arduino Mega 2560 R3 Board Kit Compatible With USB...

Or the compact version

A quality 433MHz radio receiver

To have a good reception quality, do not hesitate to take a quality receiver. Nodo recommends the Superheterodyne RXB6 module.

1pcs RXB6 433Mhz Superheterodyn
$1.45
433MHz Superheterodyne Wireless Receiver Module Support 1527/2262 Encoder
$1.86
Buy this item
newfrog.com Newfrog.com
DC5V Decode Filter Chip Wireless Superheterodyne Receiver Module(433MHZ)
$2.77
Buy this item
newfrog.com Newfrog.com
RXB8 Superheterodyne Receiver Module 433Mhz Anti-interference Receiving Module Kit
$3.05
Buy this item
newfrog.com Newfrog.com
1pc RF 433Mhz Anti-interference Superheterodyne Receiver Module Kit for Arduino/ARM/AVR
$3.05
Buy this item
newfrog.com Newfrog.com
High Frequency Superheterodyne Wireless Receiving Module - Green
$3.73
Buy this item
dx.com DealExtreme
Geeetech Superheterodyne 3400 Receiver + 433MHz RF Transmitter Kit
$5.84
Buy this item
dx.com DealExtreme
WINGONEER RXB6 433Mhz Superheterodyne Wireless Receiver Modul für Arduino / ARM /...
4.99
SMAKN RXB6 433Mhz Superheterodyne Wireless Receiver Module
$5.99
Buy this item
amazon.com Amazon.com
RXB6 433Mhz Superheterodyne Wireless Receiver Module
$7.99
Buy this item
http LightInTheBox.com and MiniInTheBox.com
Superheterodyne 3400 Wireless Receiver Module With 433RF Transmitter Board
CHF 9.99

A 433MHz radio transmitter

No special recommendations for the radio transmitter. The XD-FST low cost modules FS1000A are well-known in Arduino projects and are perfectly suited to costing virtually nothing. To increase the range, you can weld an additional antenna on some PCBs.

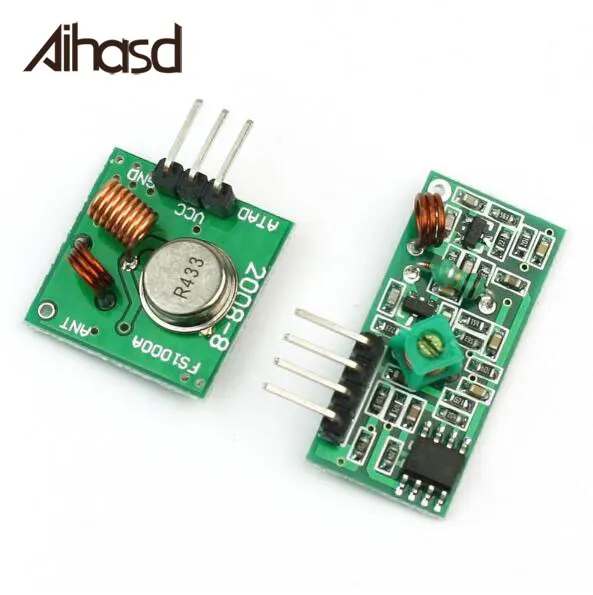

433Mhz RF Wireless transmitter module and receiver kit For Arduino Raspberry Pi
CHF 0.72
Buy this item
aliexpress.com Aliexpress
433Mhz RF Transmitter + Receiver Module Kit for Arduino / ARM /MCU...
$1.92
Buy this item
dx.com DealExtreme
1Set superheterodyne 433Mhz RF transmitter and receiver Module kit small size For...
CHF 1.91
Buy this item
aliexpress.com Aliexpress
433Mhz RF transmitter and receiver link kit for Arduino/ARM/MC
$4.47
433Mhz RF Transmitter With Receiver Kit For Arduino ARM MCU Wireless
CHF 4.99
5Pcs 433Mhz Wireless RF Transmitter and Receiver Kit For Arduino MCU
CHF 9.99
10Pcs 433Mhz RF Transmitter With Receiver Kit For Arduino MCU Wireless
CHF 11.09

Other equipment

To assemble the gateway, you can purchase the printed circuit board for the Arduino Mega2560 at the Nodo store. It costs about € and the delay is about 3 weeks. The other solution (more economical but less elegant) is to use a breadboard compatible with the Arduino Mega 2560 (classic or compact) model. Some Dupont jumpers will be enough to wire the radio modules.

To make the antenna, single copper wire with a cross section of 1.5 mm2 is sufficient. It must measure 17cm long for the frequency 433MHz.



Ready for assembly! Follow this tutorial which explains how to wire the radio modules, install the firmware and integrate your first devices under Domoticz. You may also be interested in these products:
